BendlineConduit bending marks you can read from arm's length.
Type what your tape says, in feet, inches and sixteenths. Bendline tells you where to mark the conduit, which mark on the bender to line it up with, and what angle to bend to. Works offline.
Coming soon to theApp Store
The color tells you which mark.
Every mark sits in a block colored for the mark on your bender, so an apprentice knows where it goes before reading a word.
3-point saddle over a 2 inch pipe, center at 20 inches, 45 degree center bend.
Decal or Precise math, side by side.
Decal is the multiplier and shrink printed on your bender, same as the trade books. Precise uses the real radius of your shoe. Turn on both and see the two numbers with one line on why they differ.
Your choice is saved with every result. An update never changes the math of a saved sheet.
Decal
Between marks
12Shrink 1-1/2
Precise
Between marks
11-15/165-1/8 shoe radius

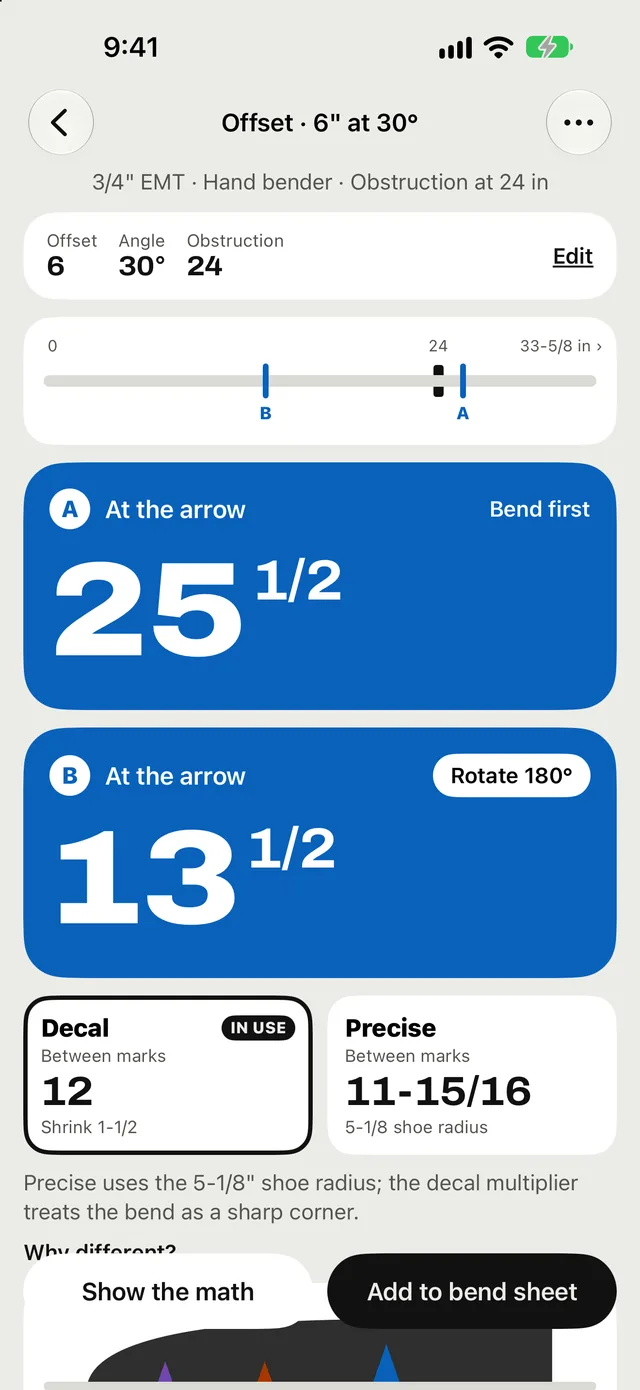

6 inch offset at 30 degrees on 3/4 inch EMT.
Built for the job site.
Tape-measure fractions to 1/16
A keypad for gloved thumbs: 4 feet 7-3/8 is six taps. Feet and inches, never decimals unless you ask.
Every common bend
Offset, 90 stub, back-to-back, 3-point saddle and kick are free forever. Pro adds 4-point saddle, rolling offset, parallel, concentric, segment and kicked 90.

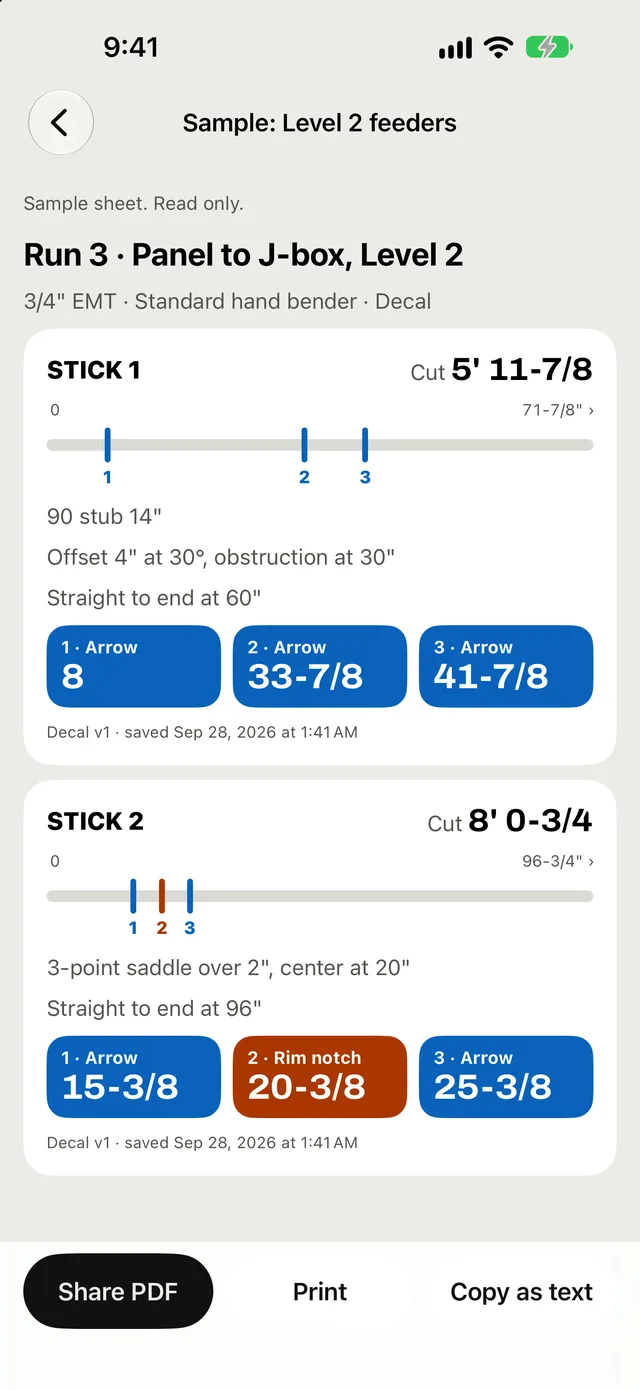

Bend sheets for whole runs
Plan every stick with cut lengths, then print on Letter or send a PDF or plain text to your helper.
A level on the conduit
Lay the phone on the pipe. The screen fills as you pull and turns green at the stop angle, springback included.
Your bender, your numbers
Take-up, radius, gain and springback from published manuals, with the source on every row. Calibrate gain with one test bend.
EMT, IMC and rigid
1/2 inch to 1-1/4 inch on hand benders free. Pro adds 1-1/2 to 4 inch and mechanical, electric and hydraulic benders.
Bendline Pro
$9.99 once
- 4-point saddle, rolling, parallel, concentric, segment, kicked 90
- Bend sheets with PDF, print and text
- Your own benders and gain calibration
- 1-1/2 to 4 inch conduit, mechanical and electric benders
- Level, iCloud sync, unlimited history
One-time purchase with Family Sharing. The free core never locks.
Questions
Do I need an account or internet?
No. Everything runs on your iPhone or iPad, even in airplane mode. There is no sign-up.
Why are Decal and Precise different?
The decal multiplier treats each bend as a sharp corner. Precise draws the bend on your shoe's real radius, so marks move a little. Use the one your crew uses.
Which marks does it use?
Arrow, star and rim notch on hand benders; front edge of the hook or shoe center on mechanical and hydraulic benders. Each mark shows its color and name.
Is it accurate?
The math is tested against the worked examples in published bender manuals and a union bending book. It is a field aid: check marks against your bender before bending.
